MID FingerPrint can and has built many bespoke readers for clients so if you can not find the right reader for your application on these pages, please contact us.

For a list of the most frequently used reading equipment we supply please scroll down and click on the links to see a image of that reader under it description.



Transponders

The ID100 transponder has a long history of use in the animal industry throughout Europe, the first design that is available still only in Europe, the same high quality transponder that comes with the ID100US with a different delivery system.

The ID100US is the latest in our range of transponders. A 11.5mmx2.2mm transponder preloaded in a lancet delivery system that has been designed to give the user maximum control for precision placement of the transponder.

The ID100A is the Trovan transponder without the delivery system that the ID100US gives you. Can be and has been used in Fish research, where insertion of the tag is done with the use of a scalpel.

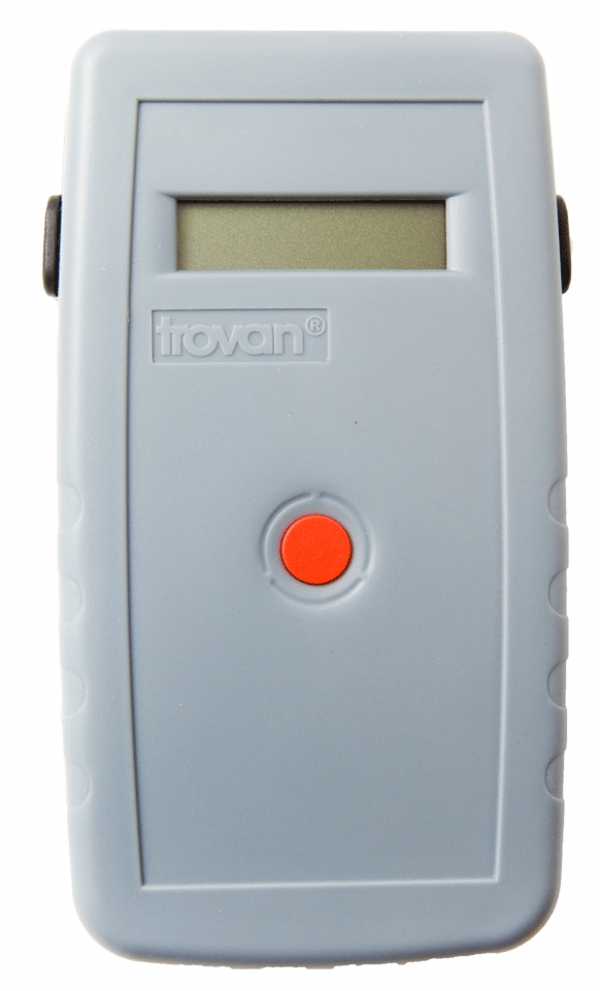

LID571

Simplicity that fits in your pocket and fits any budget.

The LID571 hand held reader is not much bigger than a packet of cards, yet can deliver over 6000 vital ID codes with the push of one button. These can include a date and time stamp and a custom code, allowing the user to access data that is important to the way they work. The LID571 has a read range of 50 mm when used with the ID100 and a weight of (incl. 9 volt battery) 165grm.

All this powered by a standard alkaline 9 Volt PP3 battery which gives a 3 hour continuous reading. Data that the reader holds including its configuration settings, are not lost when a battery change is indicated by the reader as the information is stored in flash memory. Many useful software programs already exist for this reader and MID FingerPrint are always updating programs as your requirements change. Call today for a full demonstration of this compact reader and see just how it can improve your animals/products identities and speed up your working day.

Standard:


•Bottom connector with RS232 port.
•9600baud IrDa Infra Red serial port for serial communication
•LC-Display with backlight
•Clock/calendar with lithium battery backup
•pocket/belt clip
•Windows95/98/NT/XP PC software


Optional:


•Memory expansion to double memory size.




Pheripheral equipment:


•Carry case
•Special RS232 cable with Sub-D-9 connector (order code RS232-LID571)
•Protection boot
•USB to RS232 converter for connection of laptops and PC's without RS232 port
•IR1020 IrDa to RS232 converter for connection to PC's without IRDA port
•Rechargeble 9V NiMH battery






Δ Back to top  | View image »

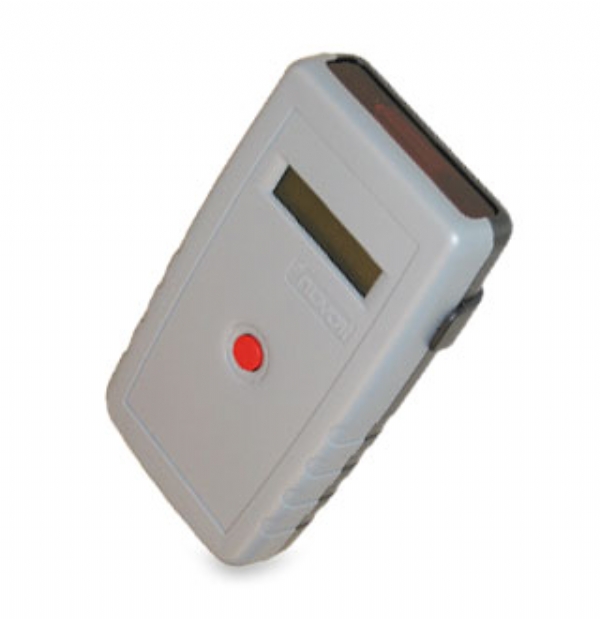

LID572

The LID572 reader has the same features as the LID571, except for the RS232 port.

The LID572 uses USB to communicate to a PC. The Infra-Red port is still available for communication. Users that have written their own application for the LID571 can use the LID572 without any modifications. The command summary for this reader is identical.

Especially large amounts of data can be transferred more rapidly, and due to the higher clock speed of the processor, searching data is done quicker.

Option: The LID572 can also be equipped, on request, with a Bluetooth module enabling wireless communication. Information can be sent to a PC, and the PC can write information back onto the LCD of the LID572 reader. The LID572 has an expansion connector. In time boards for Zigbee, mass storage etc. may become available.

Δ Back to top  | View image »

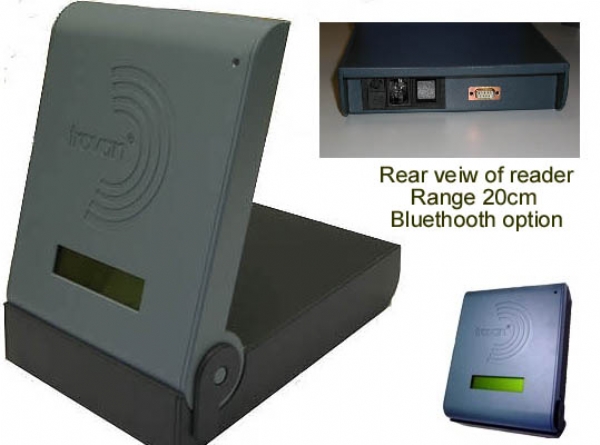

LID1260

Identify products or animals with a meaningful number.

The new LID1260 reader allows hands free operation, with fantastic range. Scan Products / animals from up to 20cm. It is possible to chose to use the reader with the antenna flat or upright allowing for even more flexibility in any working environment. Make use of the LED light and the added two line LCD display to give the operator both visual and audio confirmation of a successful read. Transmit the tag ID to your PC or Laptop via RS232 or upgrade to Bluetooth for wireless data transfer.

The LID1260 has a 512k memory allowing the user to store thousands of transponder numbers, each number may then be allocated a custom code such as your own animal or product number. This custom code can then be displayed on the two line LCD screen, giving the operator the information they need to see to speed up their working day without errors.

Δ Back to top  | View image »

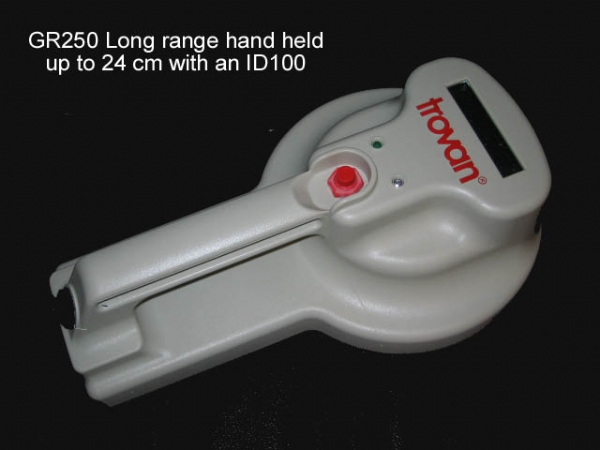

GR250

The GR250 was built to give our clients a high range reader for demanding applications.

A fully charged reader will allow the user approximately 3000 scans before the battery needs to be re-charged. The GR-250 hand held reader has additional capabilities which are implemented via its RS232 interface. These include a date and time stamp and a save and seek mode. While also allowing for the readers baud rate and communications to be modified by the operator through software. With a simple one button operation to perform a scan with a range of up to 24cm, this powerful reader delivers simplicity without any loss of performance.

The new GR250 will under normal use and recharging, have a battery that will provide years of service. The battery is a 12 Volt nickel metal hydride (NiMH) battery, which has been fitted to give un-rivalled read range for the readers size.

Δ Back to top  | View image »

LID650/610 Reader Set

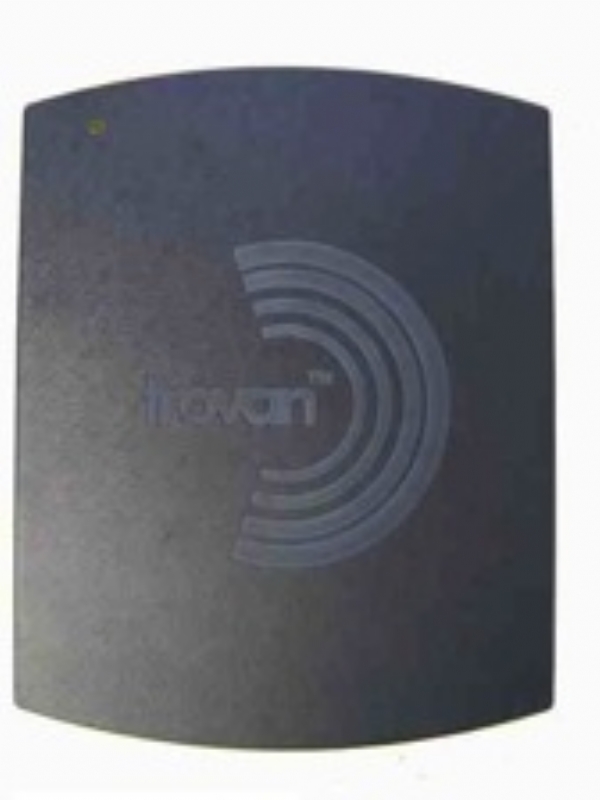

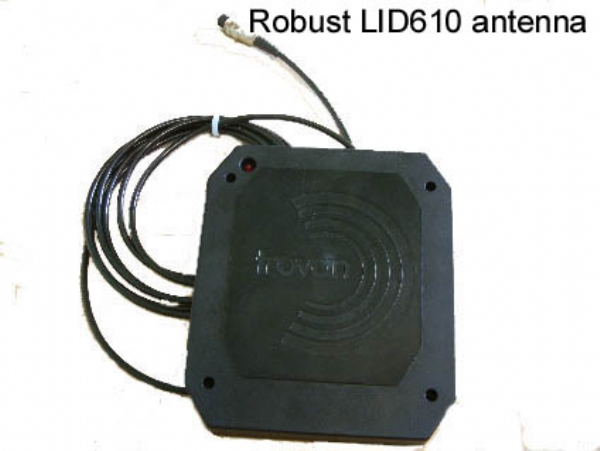

The LID650/610 stationary reader is a very robust reader without an LCD and can deliver a read range of 20cm when used with the ID100 smallest tag in our range The LID610 antenna has a confirmation LED light and is rated IP67 making it extremely durable for the most demanding environments. The reader has hands free reading and maybe wall mounted or used with the ID650/610 antenna stand.

Psion WA work about Pro high tech reader/PDA with many options including RFID and Bar-code scanner, docking station, blue tooth and much more. This reader will support the most demanding of clients mobile and data capture identification requirements.

Δ Back to top  | View image »

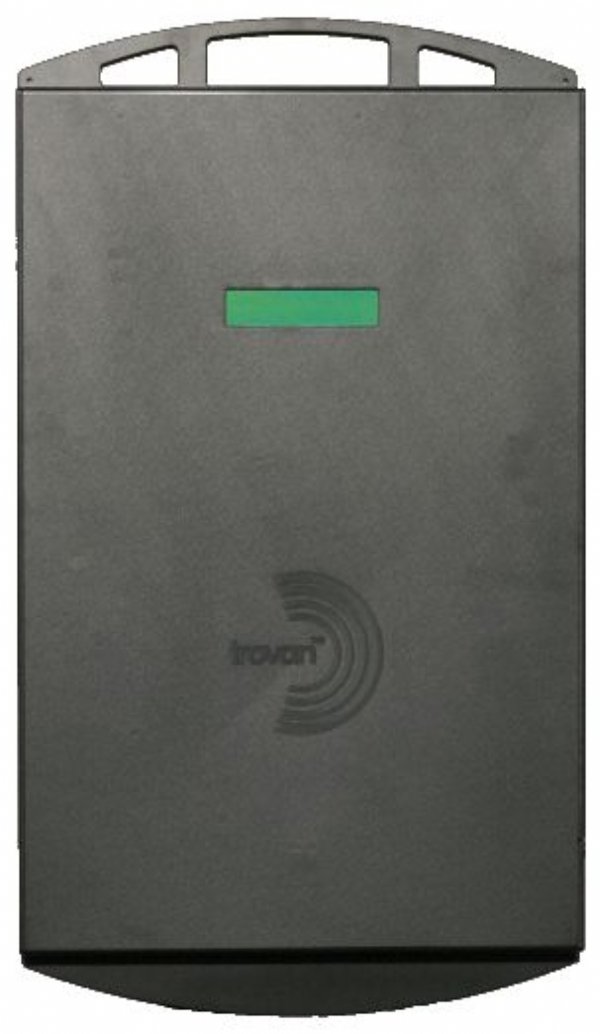

LID1262 Pass By scanner

The LID1262 panel reader can be used in as in applications that require a large reading distance and visual indication of the tag number.
General

This panel reader is making use of a triple coil antenna system for maximum reading performance. The housing is made of High Impact Poly Styrene (HIPS). A large 2 line LC Display is integrated. It is possible to assign custom names to the ID numbers via the accompanying software.The LCD has a backlight so even in dark environments the display can be read easily.

Connections


• RS232 communication port. (optional RS485 or Ethernet are possible)

• 110 or 220 VAC power supply

• Internal relay available to generate additional audio or visible indication.

Reading distances with transponder type.


ID100 x 35cm                                                                 ID200 x 50cm

ID300 x 40cm                                                                 ID400 x 80cm
